hping2 on backtrack 5r2


hping2

Introduction
  • hping2 is a network tool able to send custom TCP/IP packets and to display target replies like ping program does with ICMP replies.
  • hping2 handle fragmentation, arbitrary packets body and size and can be used in order to transfer files encapsulated under supported protocols.
  • Using hping2 you are able to perform at least the following stuff :
  1. Test firewall rules .
  2. Advanced port scanning .
  3. Test net performance using different protocols, packet size, TOS (type of service) and fragmentation. -Path MTU discovery .
  4. Transferring files between even really fascist firewall rules.
  5. Traceroute-like under different protocols.
  6. Firewalk-like usage.
  7. Remote OS fingerprinting.
  8. TCP/IP stack auditing.
  9. A lot of others.
  •  hping2 is developed and maintained by antirez@invece.org and is licensed under GPL version 2.
How To Open hping2
  • BackTrack > Information Gathering > Network Analysis > Identify Live Hosts > hping2 .
  • See the below image for more details -


hping2 Usage : Basic Options
  • -h --help
    Show an help screen on standard output .
  • Command : hping2 -h
  • See the image below for the result -





Version command


-v --version

Show version information and API used to access to data link layer, linux sock packet or libpcap

.See the below image for details -







Count Command
c --count count
  • Stop after sending (and receiving) count response packets.
  • After last packet was send hping2 wait COUNTREACHED_TIMEOUT seconds target host replies.
  •  You are able to tune COUNTREACHED_TIMEOUT editing hping2.h
  • See the below image for more details -


-i --interval
  • Wait the specified number of seconds or micro seconds between sending each packet. --interval X set wait to X seconds,
  • Interval uX set wait to X micro seconds. The default is to wait one second between each packet.
  • Using hping2 to transfer files tune this option is really important in order to increase transfer rate.
  • See the below image for more details -
  • Seconds Example -

  • Micro- Seconds Example
  • See the below image for Micro Second Example -


--fast
  • Alias for -i u10000. Hping will send 10 packets for second.
  • In this example , packets will send at the speed to 10000 micro seconds .
  • Fast way to send packets .
  • See the below image how to do that -




--faster
Alias for -i u1. Faster then --fast ;) (but not as fast as your computer can send packets due to the signal-driven design).

See what happen if you send packets at the fastest speed -




-n --numeric
  • Numeric output only, No attempt will be made to lookup symbolic names for host addresses.
  • See the below image for more details -




-q --quiet
  • Quiet output. Nothing is displayed except the summary lines at startup time and when finished.
  • See the below image for more details -




-I --interface interface name
  • By default on linux and BSD systems hping2 uses default routing interface.
  •  In other systems or when there is no default route hping2 uses the first non-loopback interface.
  • However you are able to force hping2 to use the interface you need using this option.
  • Note: you don't need to specify the whole name, for example -I et will match eth0 ethernet0 myet1 et cetera. If no interfaces match hping2 will try to use lo.




-V --verbose
  • Enable verbose output. TCP replies will be shown as follows:
  • See the below example -

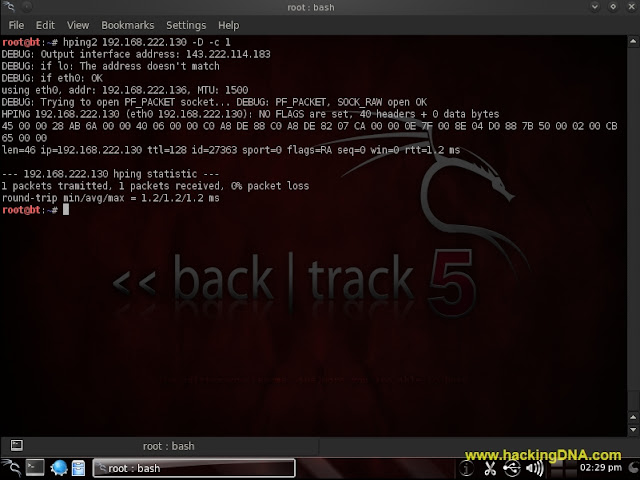

-D --debug
  • Enable debug mode, it's useful when you experience some problem with hping2.
  •  When debug mode is enabled you will get more information about
  1. interface detection,
  2. data link layer access,
  3. interface settings,
  4. options parsing,
  5. fragmentation,
  6. HCMP protocol and other stuff.

Protocol Selection

  • Default protocol is TCP, by default hping2 will send tcp headers to target host's port 0 with a winsize of 64 without any tcp flag on.
  • Often this is the best way to do an 'hide ping', useful when target is behind a firewall that drop ICMP. Moreover a tcp null-flag to port 0 has a good probability of not being logged.

-0 --rawip
  • RAW IP mode, in this mode hping2 will send IP header with data appended with --signature and/or --file.
  • See the below image for more details -





-1 --icmp
  • ICMP mode, by default hping2 will send ICMP echo-request.
  • Set ICMP mode , see the below image for more details -




-2 --udp

  • UDP mode, by default hping2 will send udp to target host's port 0.
  • See the below image for more details -



--Scan Mode
  • Scan the target with this command -
  • See the below image for more details -


THIS IS HOW WE CAN USE THIS TOOL , MORE EXAMPLES TO BE ADDED IN THIS TUTORIAL SO KEEP VISITING www.hackingdna.com .
